Purpose	education
Benefits	Asymetrická optika, špeciálny optický systém s kontrolou nežiadúceho oslnenia

Model series	LED TABAS G1
Product name	LED Tabas G1 A1
Product code	S01

For download

Datasheet

Download

Lighting - technical parametersLuminous flux6400 lm
Luminous flux tolerance±10 %
Luminous Efficacy of the luminaire142 lm/W
Correlated Colour Temperature (CCT)4000 K
Colour rendering index (CRI)80 Ra
Standard Deviation Colour Matching (SDCM)3 SDCM
Mechanical parametersConstruction materialOceľový plech
Surface finishPrášková farba, RAL 9010
Optics materialPMMA
Ingress protection code20
Dimensions1500 x 60 x 90 mm
Weight3 kg
Mounting methodPrisadnie, zavesenie
Electrical parametersNominal supply voltage230 V AC
Nominal supply frequency50 Hz
Nominal input power45 W
Operating parametersLED lifetime72000 (L90B50) hours
Environmentvnútorné (interiér)
Minimum ambient temperature10 °C
Maximum ambient temperature35 °C
Luminaire ambient temperature (Tq)25 °C
Warranty period60 months
Optional accessoriesDALI

Luminous flux	6400 lm
Luminous flux tolerance	±10 %
Luminous Efficacy of the luminaire	142 lm/W

Correlated Colour Temperature (CCT)	4000 K
Colour rendering index (CRI)	80 Ra
Standard Deviation Colour Matching (SDCM)	3 SDCM

Construction material	Oceľový plech
Surface finish	Prášková farba, RAL 9010
Optics material	PMMA
Ingress protection code	20

Dimensions	1500 x 60 x 90 mm
Weight	3 kg
Mounting method	Prisadnie, zavesenie

LED lifetime	72000 (L90B50) hours
Environment	vnútorné (interiér)
Minimum ambient temperature	10 °C
Maximum ambient temperature	35 °C

Luminaire ambient temperature (Tq)	25 °C
Warranty period	60 months
Optional accessories	DALI

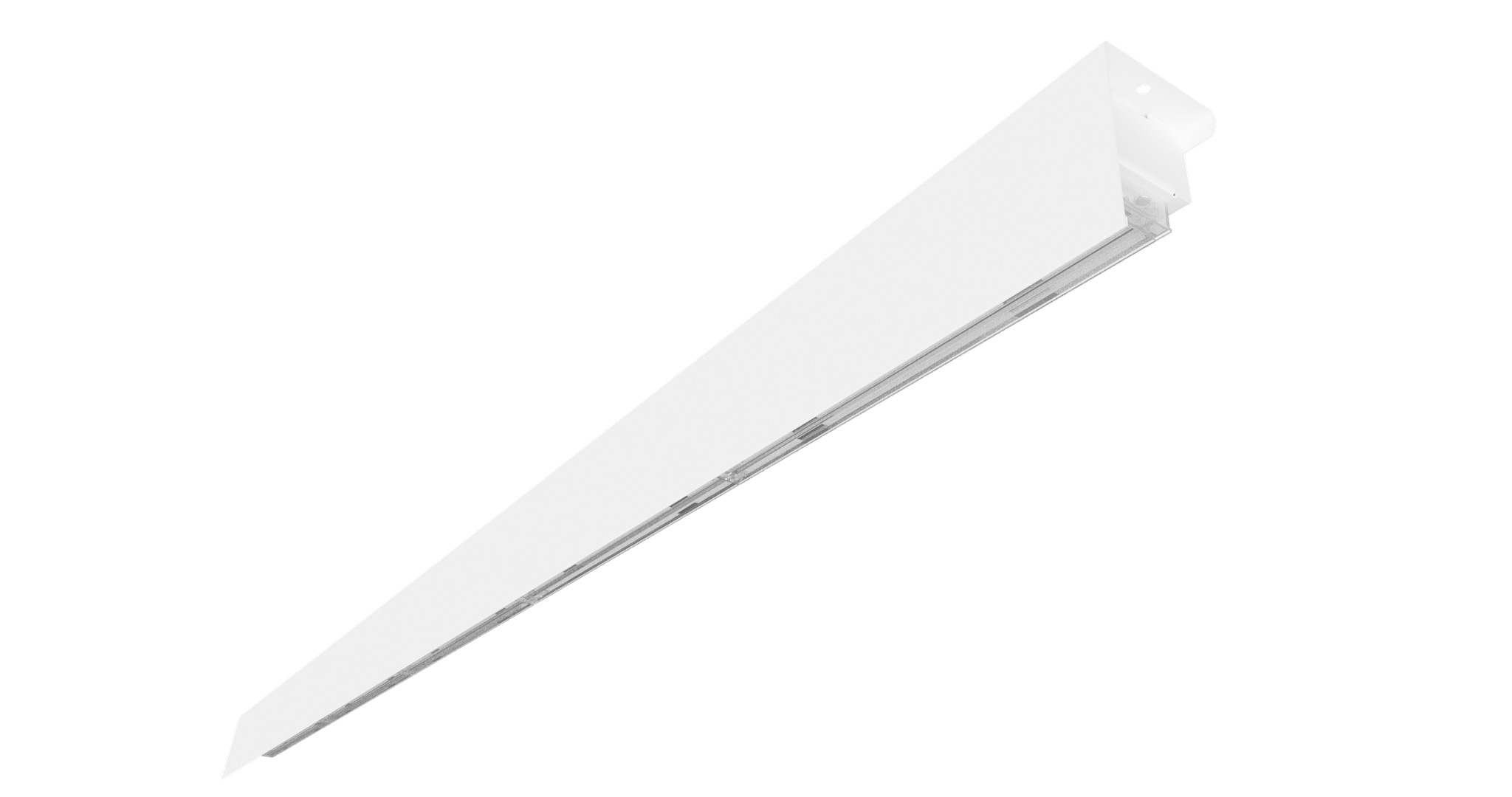

LED Tabas G1 A1

For download

Datasheet

Lighting - technical parameters

Mechanical parameters

Electrical parameters

Operating parameters
