| Purpose | retail, hotels and restaurants |
| Model series | LED SPOT CS G2 |

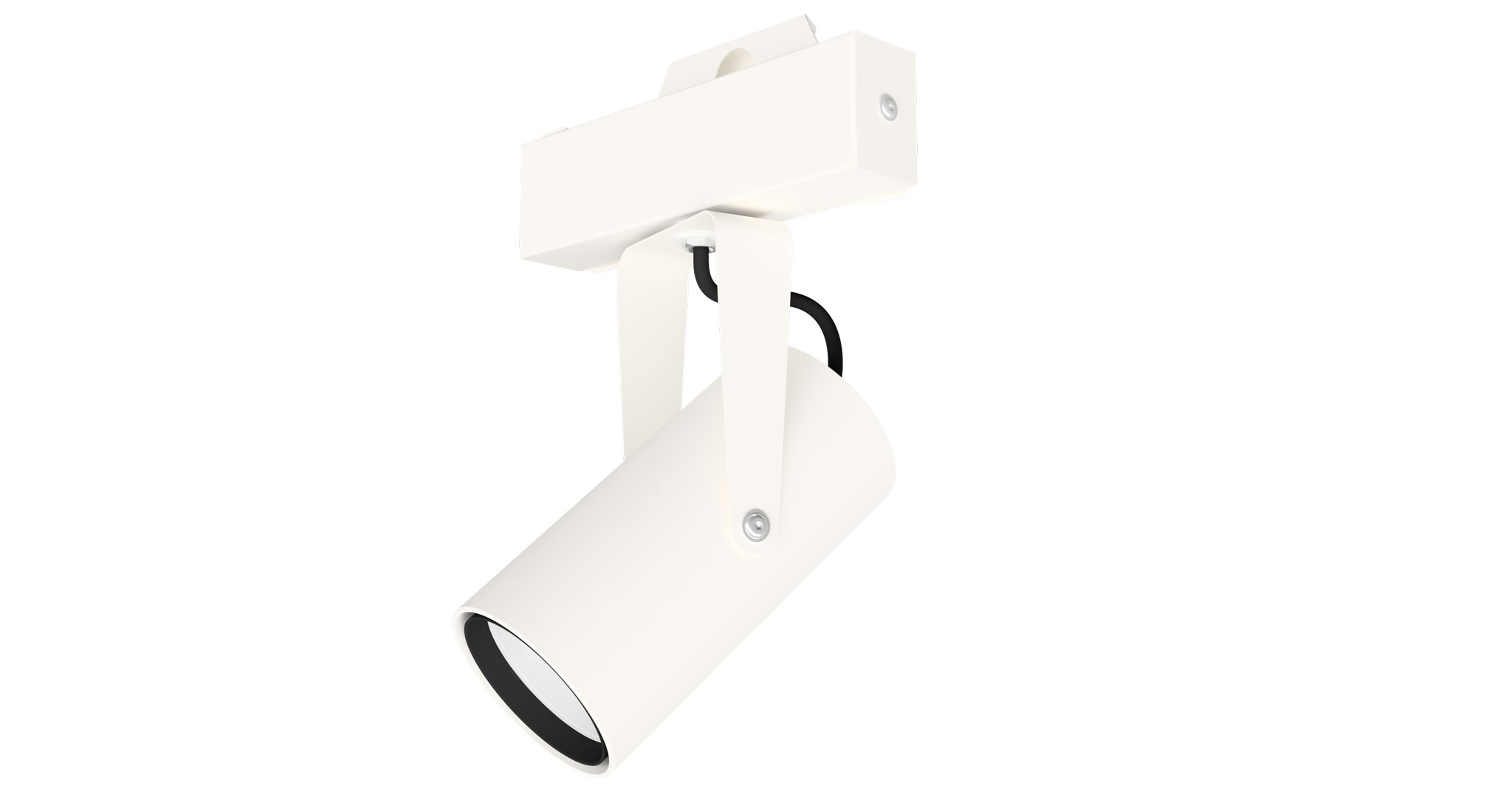

| Product name | LED Spot CS G2 1A1 |
| Product code | S01 |
| Luminous flux | 2060 lm |
| Luminous flux tolerance | ±10 % |
| Luminous Efficacy of the luminaire | 114 lm/W |
| Correlated Colour Temperature (CCT) | 4000 K |
| Colour rendering index (CRI) | 80 Ra |
| Standard Deviation Colour Matching (SDCM) | 3 SDCM |
| Construction material | Oceľový plech - box, hliník - chladič |
| Surface finish | Prášková farba, RAL 9010 |
| Ingress protection code | 20 |
| Dimensions | 160 x 190 x 237 mm |
| Weight | 1 kg |
| Mounting method | Zavesenie pre systém TEGO 100-80 |
| Nominal supply voltage | 230 V AC |
| Nominal supply frequency | 50 Hz |
| Nominal input power | 18 W |
| Power factor | 0.9 |
| Class of protection | II |
| Connection - type | Integrovaný 5m napájací kábel ukončený vidlicou - neodpojiteľný |
| LED lifetime | 55000 (L80B50) hours |
| Environment | vnútorné (interiér) |
| Minimum ambient temperature | 10 °C |
| Maximum ambient temperature | 35 °C |
| Luminaire ambient temperature (Tq) | 25 °C |
| Warranty period | 60 months |
